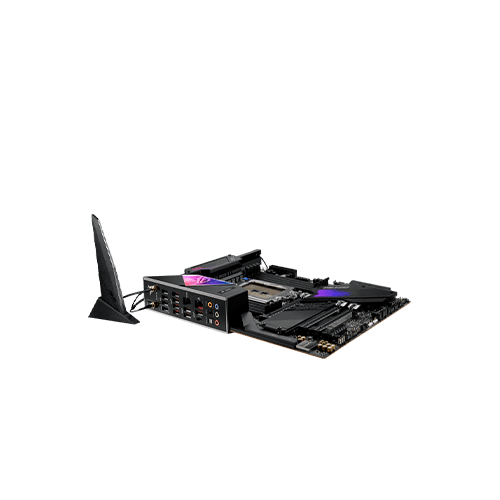

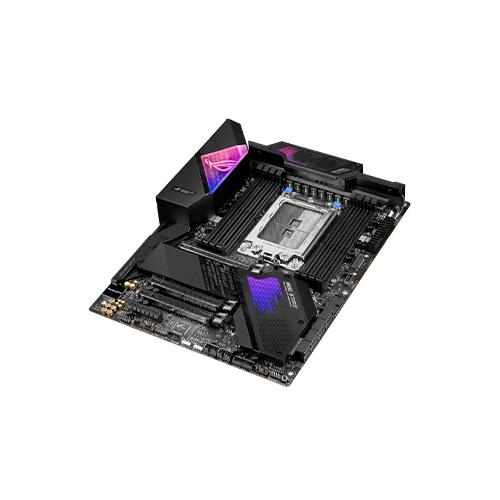

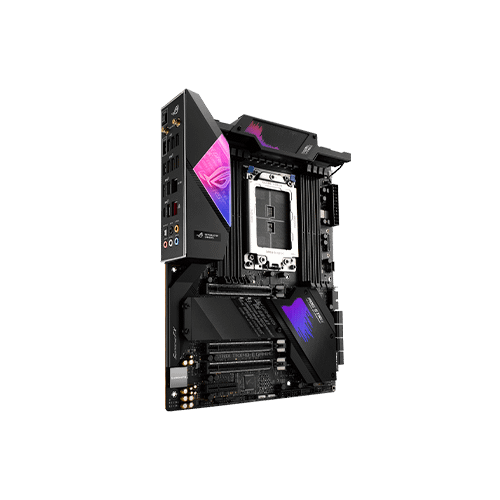

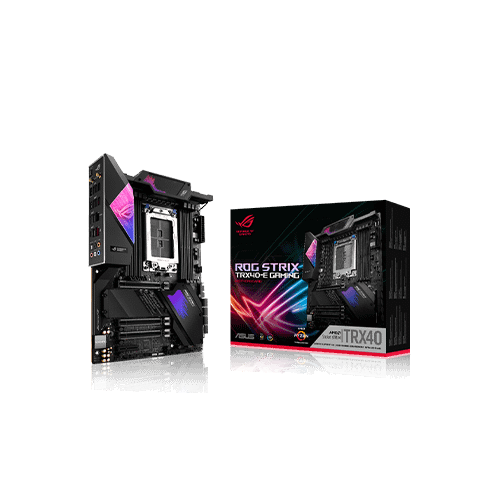

ROG Strix TRX40-E Gaming

AMD TRX40 ATX motherboard sTR4 for 3rd Gen AMD Ryzen Threadripper series processors, with 16 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting

Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2.
Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header
Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector
Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
Gaming audio: High fidelity audio with SupremeFX S1220, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience

Categories: AMD Motherboards, Motherboards, PC Components Tag: NEW

Only in Setup

Add to Wishlist

Description

Description

ROG Strix TRX40-E Gaming blends stunning gaming aesthetics with high-end desktop performance for do-it-all builds for users that like to work hard and play hard. A variety of design touches show off its cyberpunk origins, including a translucent I/O shroud glows under Aura lighting and a striking rainfall pattern on the VRM & chipset heatsinks. When it comes to performance, ROG Strix TRX40-E Gaming delivers with a wealth of ultrafast connectivity options, including three PCIe 4.0 M.2 slots, the latest 2.5G Ethernet and Wi-Fi 6 networking, and eight USB 3.2 Gen 2 ports.

Pre-mounted I/O Shield‧ BIOS Flashback^™ button
Intel^® Wi-Fi 6-AX 200
8 x USB 3.2 Gen 2‧ 7 x Type-A + 1 x Type-C4 x USB 2.0
Realtek 2.5G Ethernet
Intel^® I211-AT Gb Ethernet‧ ROG GameFirst V
‧ Anti-surge LANGuard
Audio Jacks
LiveDash OLED
Multi-GPU SLI / CFX support‧ 3 x PCIe 4.0 x16 Safeslots
(supports x16/x16/x16 mode)
‧ 1 x PCIe 4.0 x4 slot
SupremeFX S1220 CODEC‧ Dual OP Amps
‧ Impedance sense for front and rear
‧ 120dB SNR stereo playback output
‧ 108dB SNR recording input
‧ SupremeFX shieldingSonic Studio IIISonic Studio Virtual MixerSonic Radar IIIDTS^® Sound Unbound
ProCool II
2 x 4-pin AURA RGB headers
2 x 3-pin Addressable Gen2 headers
DDR4 4666+ MHz (O.C.)‧ 8 x DIMM Quad Channel
AMD Socket sTRX4 for 3^rd Gen Ryzen^™Threadripper^™ Desktop Processors
USB 3.2 Gen 2 Type-C‧ front panel connector
4 x USB 3.2 Gen 14 x USB 2.0
3 x M.2 Socket 3 with M Key,‧ 2 x Type 2242/2260/2280/22110,
storage devices support (PCIE 3.0 x4 mode) from CPU
‧ 1 x Type 2242/2260/2280/22110
storage device supports (PCIE 3.0 x4 and SATA modes) from Chipset
8 x SATA 6Gb/s
Flexkey
ASUS Node Connector

SOLID HARDWARE SPECS

With comprehensive cooling options and robust power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix TRX40-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

POWER DESIGN

Digital power control and an array of power stages ensures ROG Strix TRX40-E Gaming has the muscle to control the latest Threadripper CPUs.

ProCool II Power Connectors

ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armor for improved heat dissipation. The connector’s lower impedance helps prevent hotspots and improves reliability.

COOLING INNOVATION

ACTIVE VRM HEATSINK

An active VRM heatsink provides a large contact area for the MOSFETs and chokes, enabling more efficient cooling of the MOS heatsink for better performance and wattage resistance.
STACKED-FIN HEATSINK

Closely-packed, multi-layered fins maximize the surface area to speed heat dissipation from the controller, improving cooling.
DUAL M.2 HEATSINK

The M.2 heatsink keeps the Dual M.2 SSD at the optimum operating temperature for consistent performance and reliability.

BACKPLATE

A backplate on the rear of the board helps balance MOSFET temperatures while providing structural reinforcement.
THERMAL PAD

A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
ACTIVE CHIPSET HEATSINK

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. ROG Strix TRX40-E Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.

ACTIVE CHIPSET HEATSINK

ROG Strix TRX40-E Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

Custom Delta Superflo Fan

The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.

Air Duct

A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

SoC Heatsink

ROG Strix TRX40-E gaming features an SoC VRM heatsink positioned in the pathway of the chipset fan’s airflow to enable the SoC VRM to stay cool during memory overclocking.

Finned Heatsink

The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.

COOLER BY DESIGN

ROG Strix TRX40-E Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

- CPU:

CPU Fan Header AIO Pump Fan Header Water Pump Header

CPU Fan Header

A dedicated PWM/DC fan header for CPU coolers.
AIO Pump Fan Header

A dedicated PWM/DC header for self-contained water-cooling setups.
- Water Pump + Header

  A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

M.2:
M.2 Heatsink

The M.2 heatsink keeps the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
Chassis:

4-pin PWM/DC
Fan Header

Every onboard header supports auto-detection of PWM or DC fans.
VRM:
Heatsink Fan

Dedicated header for onboard heatsink fans.
*This fan is also PWM/DC controllable.

GAMING ENHANCEMENT

ROG Strix TRX40-E Gaming is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.

Memory:

DDR4 OC 4666MHz+

The TRX40 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots and an optimized trace layout enables DDR4 memory overclocking with maxed-out speeds for your build.

CPU: AMD 3rd Gen Ryzen | Threadripper 3960X | DRAM: Crucial BLE8G4D40BEEAK.M8FE1 | Motherboard: ROG STRIX TRX40-E GAMING | Water-cooling: Corsair H115i

Triple PCIe 4.0 M.2

ROG Strix TRX40-E Gaming features triple M.2 slots. The M.2_3 slot supports both SATA and PCIe 4.0 x4 modes, and the other slots support PCIe 4.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

NEXT-GEN CONNECTIVITY

ROG Strix TRX40-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you’ll enjoy the very best online gaming experience.

Wi-Fi 6 (802.11 ax)

The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards.

*Speed may vary according to setup
2.5G Ethernet

2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Intel Gigabit Ethernet

ROG Strix TRX40-E Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

SUPREMEFX

Shielded Audio, Superior Sound

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that’s engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

Audio cover

Effective shielding against electromagnetic interference preserves the integrity of audio signals for the best sound quality.

Audio-line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Premium Nichicon™ audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

Dual OP amplifiers

With two op-amps onboard you’re able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.

S1220 CODEC

10 DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs.

DESIGN & CUSTOMIZATION

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix TRX40-E Gaming wonderfully easy.

STRIKING NEW DESIGN

ROG Strix TRX40-E Gaming strikes an arresting pose, with or without RGB. A unique RGB rainfall pattern on the VRM heatsink provides a colorful accent to this critical component. The I/O shroud sports a laser-engraved ROG logo topped with an acrylic plate imprinted with ROG’s signature cybertext patterns, so switching on the lights illuminates a whole new aesthetic dimension — unique style with a cyberpunk edge.

Aura Sync:

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music
Smart

ADDRESSABLE GEN 2 RGB HEADER

ROG Strix TRX40-E Gaming’s Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

LIVEDASH OLED

ROG Strix TRX40-E Gaming is equipped with LiveDash, a built-in 1.3“ OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You’re even able to customize the default LiveDash GIF, so that it’ll display your own image or animation.
